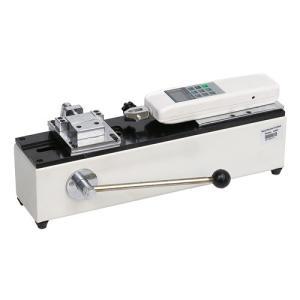

Horizontal Installation AMH Manual Horizontal Test Stand Test stand can be installed in table

Function:

AMH manual horizontal test stand adapt to domestic and imported test NLB NK, ALB series pointer type push pull force gauge and for pressure load,and insertion force test, etc. Of HF series digital force gauge.

Features:

1. Horizontal installation;

2. Manual operation, simple stability operation

3. This test stand can be installed in table face to make the frame more stable.

Technical Specifications:

1. Effective trip: 50mm

2. Maximum load: 500N

3. Dimensions: 450 * 260* 160 mm

4. Net weight: 10.6 kg

5. Test effective area: 105 * 100 mm, the largest can reach 105 x152mm
